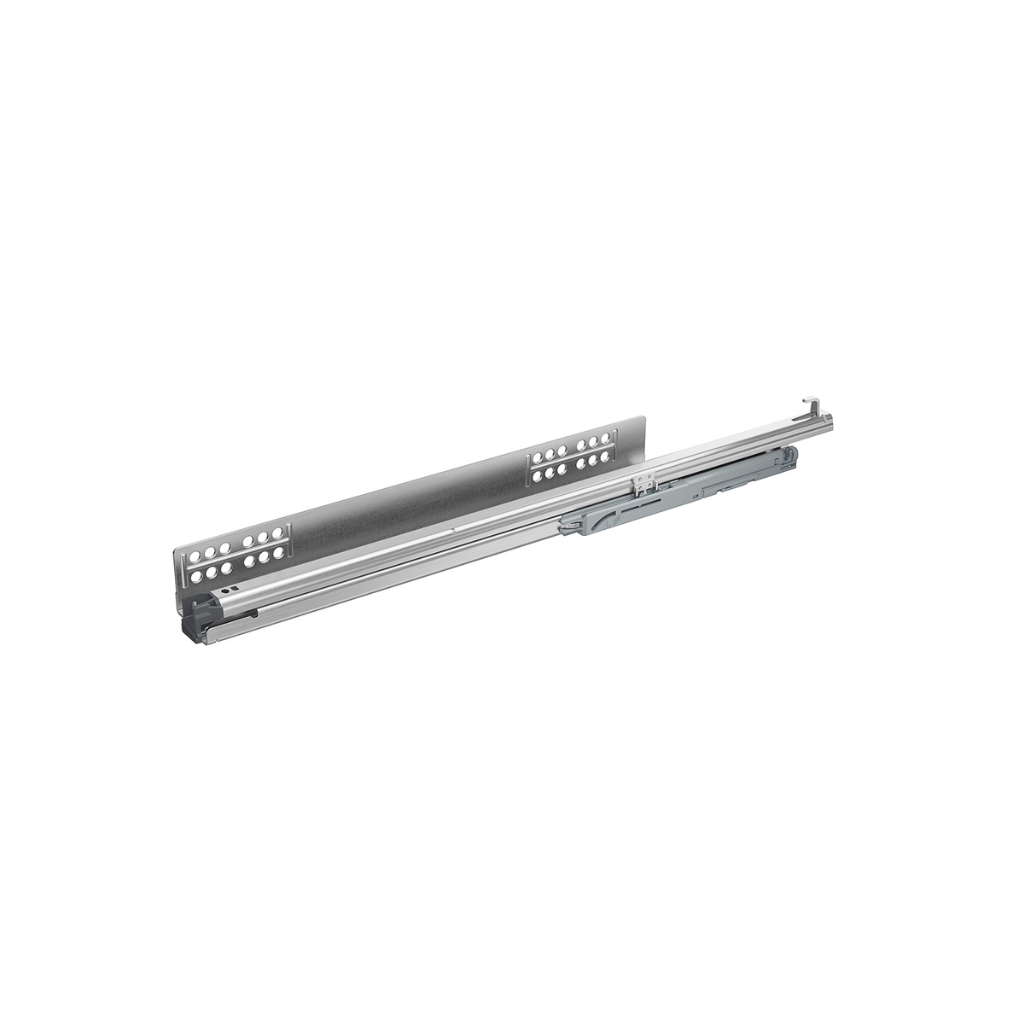

Full extension runner Quadro V6 YOU M (30 kg) with Push to open, 500 mm, left (20N)

• Full extension runner for combining with AvanTech YOU system drawer or wooden drawer with catches
• Integrated Push to open opening mechanism
• Tool-less height adjustment up to + 3 mm
• Optional: synchronisation / multi synchronisation
• Optional: pull-out shelf support / pull-out shelf locating catch
• Load class M (30 kg)
• Platform concept: identical cabinet body, drawer and front panel dimension for Quadro partial and full extension runners for slide on installation
• Suitable for drawers with a side profile thickness of up to 16 mm
• Load capacity to EN 15338, Level 3
• Galvanised steel

Advice:

• Catch for use with wooden drawer can be ordered separately
• Synchronisation / multi synchronisation for Quadro V6 YOU with Push to open can be ordered separately
• Pull-out shelf support for use with wooden drawer (pull-out shelf) can be ordered separately
• Using the pull-out shelf support reduces drawer length by 10 mm (nominal length - 20 mm)
